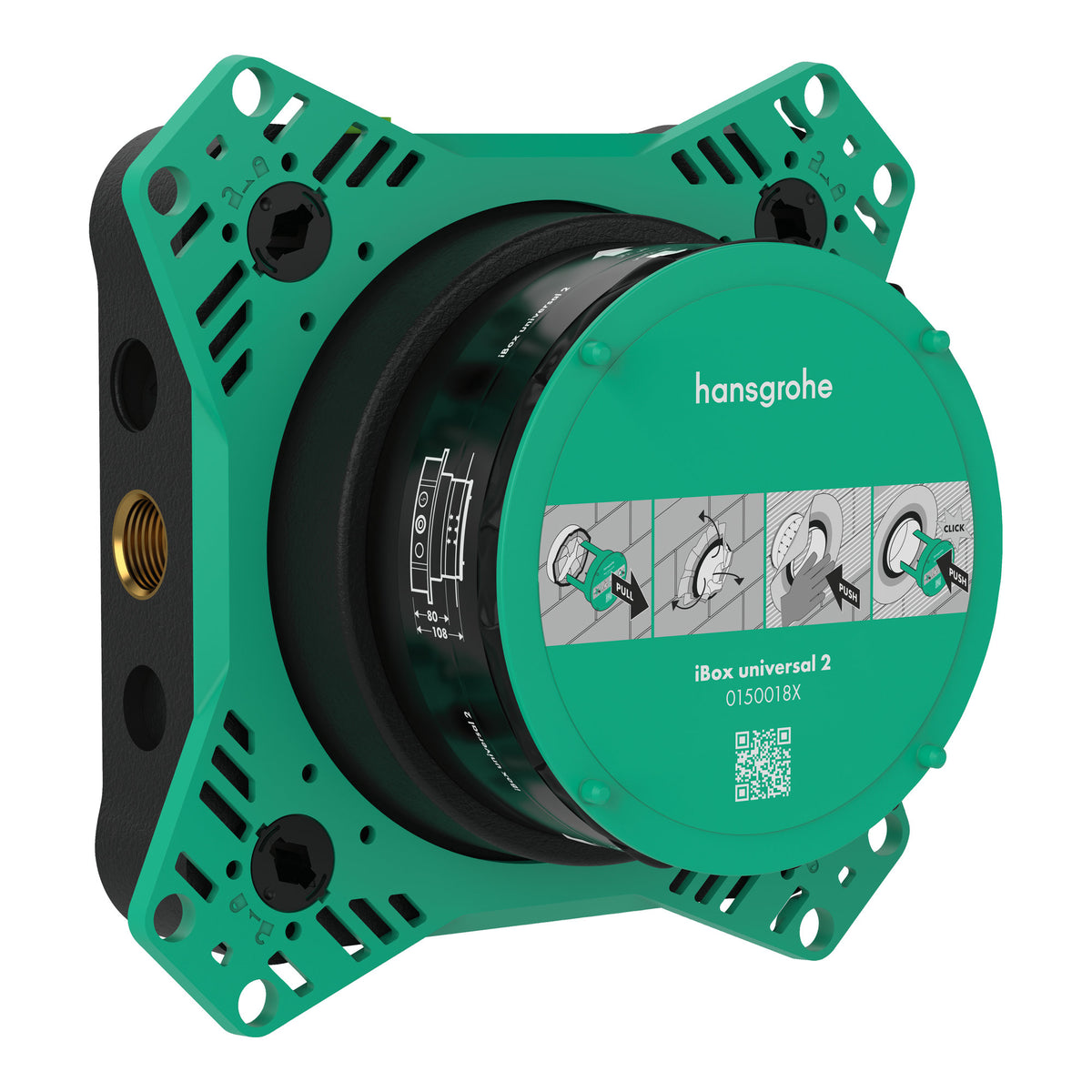

Hansgrohe iBox universal 2 Basic set

Series: iBox universal 2
The set includes: internal body, flushing valve, adjustable clamping ring, seal, and assembly instructions.
The Hansgrohe iBox universal 2 internal body is designed for concealed installation of shower systems, bathtubs, and new-generation thermostats. It is an advanced installation base that allows for extensive design freedom in the bathroom, while maintaining a clean and precise external appearance of the chosen trim set.
The iBox universal 2 is compatible with all new Hansgrohe concealed installation trim sets for showers, bathtubs, and thermostats, including ShowerSelect Comfort and DuoTurn. In combination with adapter plate 13588000, it also allows compatibility with iBox1 concealed trim sets model 01800180.
The internal structure is made of dezincification-resistant brass, with an foamed EPP casing for heat and sound insulation. The flexible installation ring adapts to various installation situations, can be adjusted in 5 mm increments, and is suitable for front or rear installation. The sliding sleeve eliminates the need for shortening, and a built-in level helps with precise horizontal and vertical alignment during installation.
Unique technologies and functions of hansgrohe
For maximum security - a pre-assembled, permanently attached sealing sheet, 100% waterproof, which helps prevent water penetration into the wall or floor.
Quick and safe installation - smart installation structure with built-in aids, a flexible installation ring, and a built-in level, for a faster, more precise, and safer installation process.
Sound-decoupled installation - sound-insulated installation, for reducing the transfer of water and contact noises through the wall.
Rotationally-symmetric installation - symmetrical installation that allows for greater flexibility in planning and positioning connections.
Design awards: iF product design award 2023
